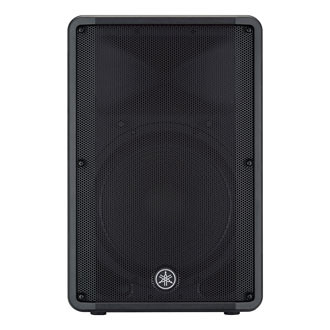

Yamaha DBR15 Powered Speaker

$474.99
SKU:
508090603333
Shipping:
Calculated at checkout
Quantity:

Product Description

Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 50Hz – 20kHz
Nominal coverageH 90°
V 60°
ComponentsLF Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 132dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
DimensionsW 455mm (17.9")
H 700mm (27.6")
D 378mm (14.9")
Net weight 19.3 kg (42.6 lbs)
Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)

Other Details

Brand:
Yamaha
