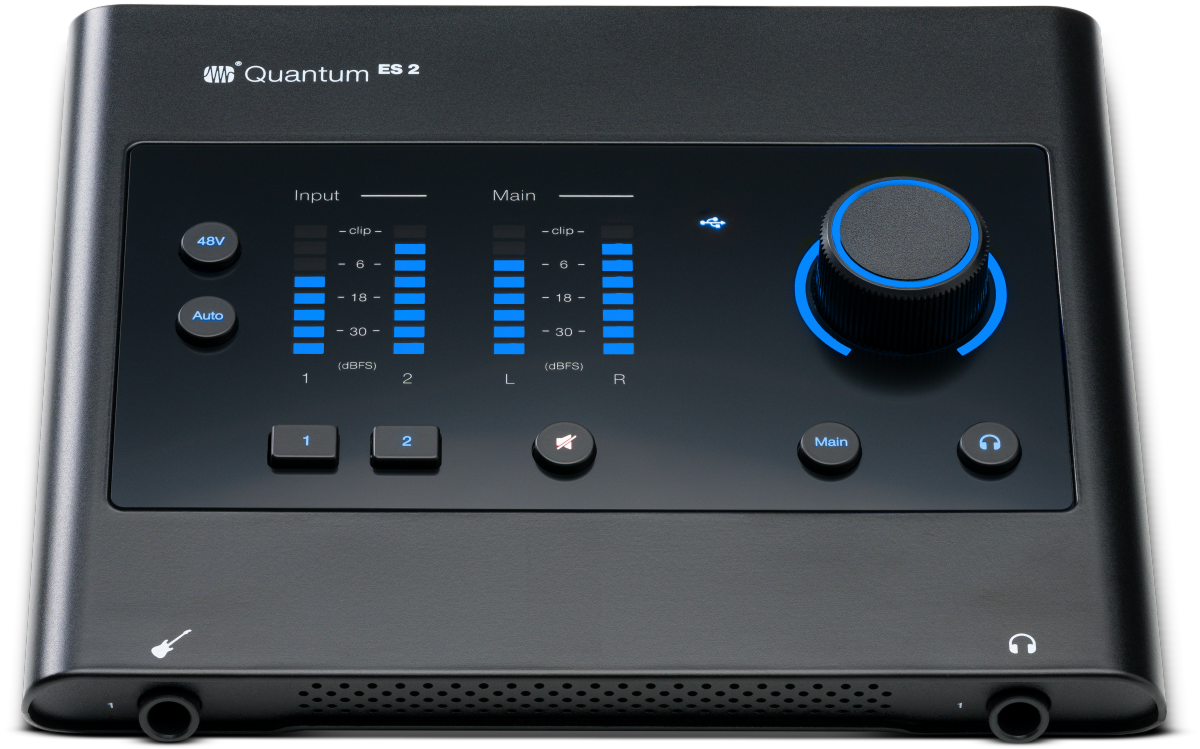

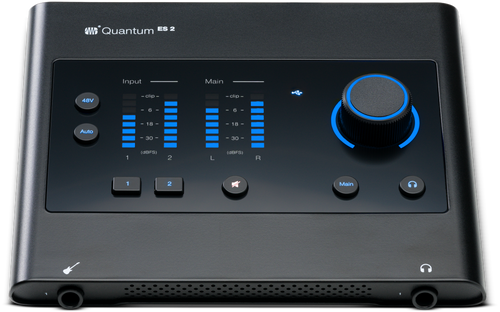

Presonus Quantum ES2

Product Description

Capture your creativity with the Quantum ES 2. The next generation of PreSonus audio interfaces, the Quantum ES 2 is the culmination of nearly 30 years of PreSonus expertise, delivering pristine preamps and class-leading converters for self-made audio creators.

FEATURES

High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
Co-Developed with Fender® – Front-facing instrument input engineered for guitarists by industry-leading experts.
Professional Recording Software Included – 6 months of Studio One+ with full access to Studio One, add-ons, and more.
Auto Gain – Dial in recording-ready levels, hassle-free.
Universal Control App – Full control and metering from your mobile device, desktop, or tablet.

Electronics

HEADPHONE JACK One - 1/4" TRS Female Stereo

CONNECTIVITY USB-C®

VOLTAGE 120V

PHANTOM POWER +48 VDC

Performance

DIGITAL AUDIO BIT DEPTH 24-bit

DIGITAL AUDIO DYNAMIC RANGE 120 dB

Inputs

INSTRUMENT INPUTS DYNAMIC RANGE 111 dB (A-Weighted, Minimum Gain)

INSTRUMENT INPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)

INSTRUMENT INPUTS GAIN RANGE 75 dB

INSTRUMENT INPUTS MAXIMUM LEVEL +15 dBu (Unbalanced, Minimum Gain)

LINE INPUTS DYNAMIC RANGE 114 dB (A-Weighted, Minimum Gain)

LINE INPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

LINE INPUTS GAIN RANGE +/- 10 dB

LINE INPUTS IMPEDANCE 10K Ohms

LINE INPUTS MAXIMUM LEVEL +15 dBu (Balanced, Minimum Gain)

LINE INPUTS TOTAL HARMONIC DISTORTION 0.001% (1 kHz, Minimum Gain)

MICROPHONE INPUT CONNECTION TYPE XLR Female (Combo), Balanced

MICROPHONE PREAMP DYNAMIC RANGE 113 dB (A-Weighted, Minimum Gain)

MICROPHONE PREAMP EQUIVALENT INPUT NOISE -129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)

MICROPHONE PREAMP FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)

MICROPHONE PREAMP GAIN CONTROL RANGE 75 dB

MICROPHONE PREAMP INPUT IMPEDANCE 1600 Ohms

MICROPHONE PREAMP MAXIMUM INPUT LEVEL +14 dBu (Balanced, Minimum Gain)

MICROPHONE PREAMP TOTAL HARMONIC DISTORTION 0.001% (1 kHz, Minimum Gain)

Outputs

HEADPHONE OUTPUTS DYNAMIC RANGE 111 dB (A-Weighted)

HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)

HEADPHONE OUTPUTS IMPEDANCE WORKING RANGE 22 Ohms

HEADPHONE OUTPUTS MAXIMUM OUTPUT 7.5 dBu (50 Ohms)

HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION 0.02% (1 kHz)

MAIN AND LINE OUTPUTS DYNAMIC RANGE 117 dB (A-Weighted)

MAIN AND LINE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

MAIN AND LINE OUTPUTS MAXIMUM LEVEL +15 dBu (Balanced)

MAIN AND LINE OUTPUTS OUTPUT IMPEDANCE 51 Ohms

MAIN AND LINE OUTPUTS TOTAL HARMONIC DISTORTION 0.001% (1 kHz, +4 dBu)

MAIN OUTPUTS CONNECTION TYPE 1/4" TRS Female

Hardware

MIDI IO 3.5 mm Type-B

Measurements

DIMENSIONS 4.00x9.00x12.00 IN

SHIPPING WEIGHT 3.75 LB

PRODUCT DEPTH 6.2" (158 mm)

PRODUCT HEIGHT 1.9" (48.3 mm)

PRODUCT WIDTH 6.9" (175 mm)

SHIPPING LENGTH 12.00 IN

SHIPPING HEIGHT 4.00 IN

SHIPPING WIDTH 9.00 IN

Other Details

Brand:

Presonus
