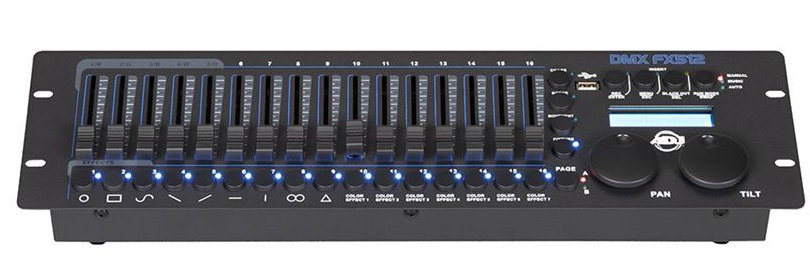

- American DJ DMX FX512
Product Description
Features:
- 19-inch rack-mount DMX Controller
- DMX 512 & RDM protocol.
- 512 DMX channels.
- Control up to 32 intelligent fixtures, up to 18 channels each
- 32 chases, each up to 100 steps, can run 5 chases simultaneously
- 32 programmable scenes
- Soft-patchable faders & control wheels
- 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures
- USB for data backup and firmware update.
Control:
- DMX512 and RDM
- RDM to set the DMX addresses and DMX channel mode of the fixtures from controller
- 16 channel control faders
- Dedicated Pan/Tilt wheels (User Assignable)
- 16 Effects / Fixture select buttons
- Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
- With Wired Digital Communication Network
Connections:
- 5pin XLR DMX Output
- Power Supply Input
- USB A Port
Operational Conditions:
- Use in dry location only
- Min. ambient temperature: 32°F (0°C)
- Max ambient temperature: 113°F (45°C)
- Humidity: <75%
- Allow 6" minimum between this controller and surrounding devices or wall
Storage Conditions:
- Store in a dry location
- Ambient storage temperature: 77°F (25°C)
Power:
- Power Supply: DC9V`12V 300mA min. (DC9V 1A PSU Included)
- Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W
Dimensions & Weight:
- Length: 5.28" (134mm.)
- Width: 19" (482mm.)
- Height: 2.71" (68.9 mm.)
- Weight: 4.7lbs.(2.13kg.)
Other Details
Brand:
American DJ
