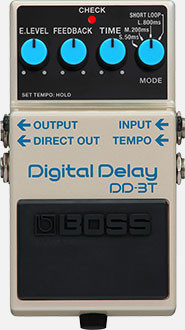

Boss DD-3T Digital Delay

BOSS’s iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we’ve updated the classic stomp with enhanced functionality while fully retaining the original’s sound and control layout. It’s now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.

SPECIFICATIONS
Nominal Input Level-20 dBu
Input Impedance 1 M ohm
Nominal Output Level-20 dBu
Output Impedance1 k ohm
Recommended Load Impedance 10 k ohms or greater
Bypass Buffered bypass
Controls MODE knob,TIME knob, FEEDBACK knob, E.LEVEL(Effect Level) knob
Pedal switch Indicator CHECK indicator (Used for indication of check battery )
Connectors INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
TEMPO jack: 1/4-inch phone type
DC IN jack
Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw 45 mA
Expected battery life under continuous use Alkaline: Approx. 11.5 hours Carbon: Approx. 3 hours

*These figures will vary depending on the actual conditions of use.AccessoriesOwner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)Options (sold separately)AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7
SIZE AND WEIGHT
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery)420g 15 oz
