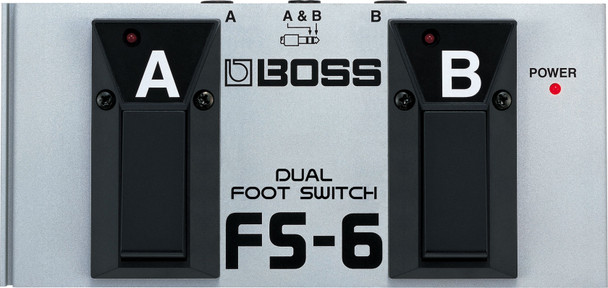

BOSS FS-6 Dual Footswitch

Two switches in one, BOSS’s FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.

• Each footswitch can be assigned latch- or momentary-type
• Stereo input jack for single stereo cable connection
• Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
• Connect to a wide variety of instruments, rhythm machines, guitar amps, and electronic devices that have control input jacks compatible with FS-5L/FS-5U

Controls:
Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B
Connectors:
Jack A, Jack B (1/4 inch phone type)
Jack A & B (TRS 1/4 inch phone type)

Power Supply:
DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)
Current Draw 8 mA (max.)
Accessories Dry battery/9 V (6F22)
Owner's Manual
SIZE AND WEIGHT ( INCL. BATTERY )
Width 188 mm 7-7/16 inches
Depth 91 mm 3-5/8 inches
Height 43 mm 1-3/4 inches
Weight 470 g 1 lbs. 1 oz.
