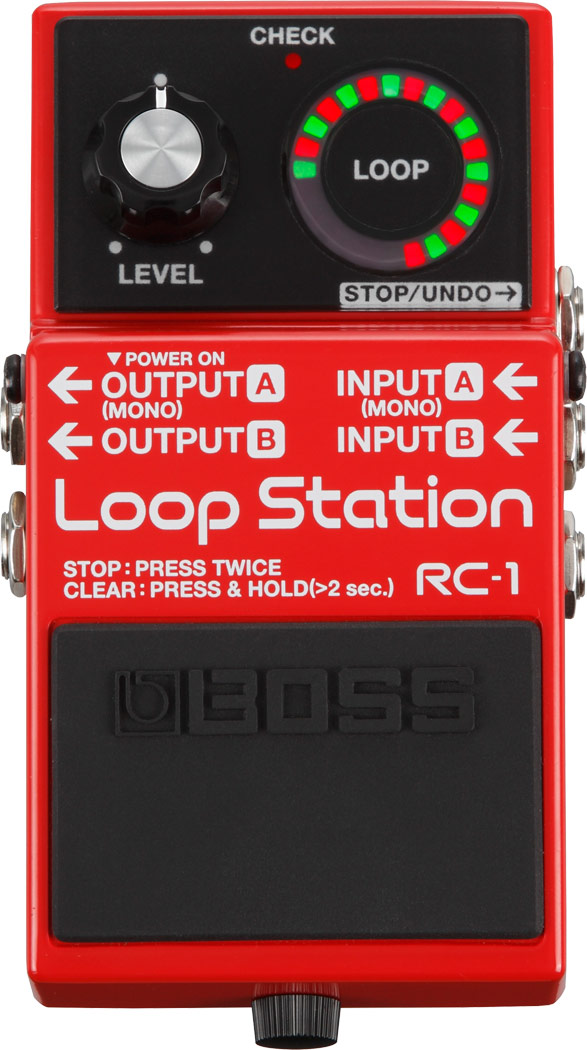

Boss RC-1 Loop Station

SPECIFICATIONS

Nominal Input Level-20 dBu
Input Impedance1 M ohm
Nominal Output Level-20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Maximum Recording Time Approximately 12 minutes
Controls:
Pedal switch
LEVEL knob
Indicators:
CHECK indicator
LOOP indicator
Connectors:
INPUT A (MONO) jack: 1/4-inch phone type
INPUT B jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
STOP/UNDO jack: 1/4-inch TRS phone type
DC IN jackPower SupplyAlkaline battery (9 V, 6LR61)

AC adaptor (PSA series: sold separately)
Current Draw 95 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)Alkaline: Approx. 3 hours
Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately):
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7

SIZE AND WEIGHT
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight 430 g 1 lb
