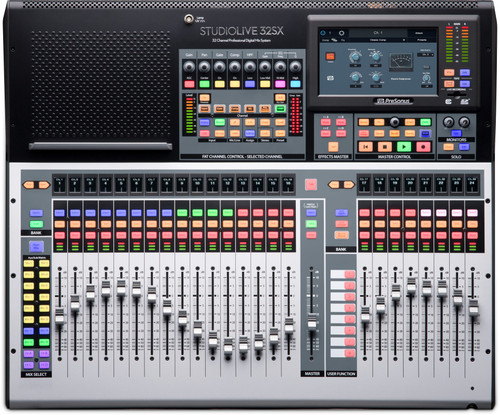

- Presonus StudioLive 32SX
Product Description
Same day shipping if ordered before 3pm EST
Loaded with the processing power, studio-grade audio quality, and flexible routing options that made StudioLive mixers famous, the StudioLive 32SX is the perfect compact 32-channel digital mixing solution. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32SX digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems, and Fat Channel plug-in models on every input and mix. The low profile of the StudioLive 32SX makes it an ideal solution for any mixing environment where desk real estate is at a premium. The split-fader workflow lets you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. With 32 XMAX mic preamps and 16 balanced mix outputs, the StudioLive 32SX packs connectivity and power into an efficient use of space.
Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One®.
Mac
- macOS® 10.11 or higher (64-bit only)
- Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
- Intel Core 2 Duo (Intel Core i3 or faster recommended)
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB 2.0 port
- Internet connection
- Internal or external 7200 RPM storage drive highly recommended
- 30 GB hard disk space
- Monitor with 1366x768 resolution
iOS
- iOS 10 or later
- iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android
- Android™ 5.0 (Lollipop) or later
- Android smartphone (QMix-UC)
- Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Technical Specifications
Mi crophone Preamplifier | |
|---|---|
|
Input Type |
XLR Female, balanced |
|
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
|
Input Impedance |
1 kΩ |
|
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
|
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
|
Common Mode Rejection Ratio (1 kHz at unity gain) |
65 dB |
|
Gain Control Range (±1 dB) |
0 dB to +60 dB |
|
Maximum Input Level (unity gain) |
+12 dBu |
|
Phantom Power (±2 VDC) |
48 VDC, switchable per channel |
Line Inputs | |
|---|---|
|
Type |
¼” TRS Female, balanced |
|
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
|
Input Impedance |
10 kΩ |
|
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
|
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
|
Maximum Input Level |
+18 dBu |
Tape Inputs | |
|---|---|
|
Type |
RCA Female, unbalanced (stereo pair) |
|
Maximum Input Level |
+12 dBu, ±0.5 dBu |
XLR Outputs | |
|---|---|
|
Type |
XLR Male, balanced |
|
Maximum Output Level |
+24 dBu, ±0.5 dBu |
|
Output Impedance |
100Ω |
Line Outputs | |
|---|---|
|
Type |
¼” TRS Female, balanced |
|
Maximum Output Level |
+18 dBu, ±0.5 dBu |
|
Output Impedance |
100Ω |
Tape Outputs | |
|---|---|
|
Type |
RCA Female, unbalanced (stereo pair) |
|
Maximum Output Level |
+18 dBu, ±0.5 dBu |
|
Output Impedance |
100Ω |
Headphone Output | |
|---|---|
|
Type |
¼” TRS Female, active stereo |
|
Maximum Output |
100 mW/ch. @ 60Ω load |
|
Frequency Response |
20 Hz – 20 kHz (± 0.5 dB) |
|
THD+N |
0.01%, 1 kHz, max gain, 20 Hz BW, unwtd |
|
S/N Ratio |
96 dB, 1 kHz, max gain, 20 Hz BW, unwtd |
System Crosstalk | |
|---|---|
|
Input to Output |
-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
|
Adjacent Channels |
-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
Digital Audio and Control | |
|---|---|
|
ADC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|
DAC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|
USB Recording Port |
USB 2.0, Type-B |
|
AES/EBU Output |
XLR Male |
|
Network Control Port |
RJ-45 |
|
AVB Audio Network Port |
Locking XLR Ethernet |
|
Internal Processing |
32-bit, floating point |
|
Sampling Rate |
48 kHz, 44.1 kHz |
|
A/D/A Bit Depth |
24 |
|
Reference Level for 0 dBFS |
+18 dBu |
|
Total System Latency |
1.9 ms (local routing, analog in-analog out, all processing active) |
Clock | |
|---|---|
|
Jitter |
<20 ps RMS (20 Hz - 20 kHz) |
|
Jitter Attenuation |
>60 dB (1 ns in, 1 ps out) |
Power / Environmental | |
|---|---|
|
Connector |
IEC |
|
Input-Voltage Range |
90 to 230 VAC (±10%) |
|
Power Requirements (continuous) |
85W |
|
Recommended Ambient Operating Temperature |
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit |
Physical | |
|---|---|
|
Height |
6.51” (165.36 mm) |
|
Width |
25.98” (659.81 mm) |
|
Depth |
22.97” (583.84 mm) |
|
Weight |
30 lbs. (13.6 kg) |
