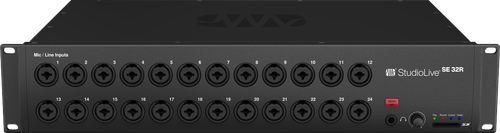

- Presonus StudioLive® SE 32R Digital Rack Mixer, Black
Product Description
- 40-channel digital rack mixer with 32 XMAX-R recallable preamps
- 16 FlexMixes configurable as aux, subgroup, or matrix mixes
- 4 dedicated subgroups and 4 FX mixes with stereo returns
- 24 DCA groups for precise control
- Continuously bidirectional 64x64 USB 2.0 audio interface
- Onboard stereo SD recording
- Capture integration with Virtual Soundcheck
- Milan-certified AVB networking for Series III ecosystems
- Per-channel source switching (Analog, USB, SD, AVB)
- Universal Control remote mixing and Offline Editor
- QMix-UC personal monitor mixing
- Standalone, monitor mixer, or stagebox modes
- Perpetual license for Fender Studio Pro included
Electronics
1/4" TRS Active Stereo
120V
35W (Continuous)
+48 VDC (±2 VDC)
Performance
24
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
=+18 dBu
1.9 ms (local routing, analog in-analog out, all processing active)
Inputs
RCA Female, Unbalanced (Stereo Pair)
+12 dBu, ±0.5 dBu
Combo Locking XLR Mic - 1/4” TRS Line
65 dB (1 kHz at Unity Gain)
20-20 kHz (±0.5 dBu at Unity Gain)
0 dB to 60 dB (±1 dB)
1 kΩ
=+12 dBu (Unity Gain)
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Outputs
20 Hz to 20 kHz, +/-0.5 dB
100 mW/ch. @ 60Ω Load
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
1/4" TRS, Balanced
=+18 dBu, ±0.5 dBu
100 Ohms
Hardware
Locking XLR, Ethernet
RJ-45
USB 2.0, Type-
Other Details
Brand:
Presonus
