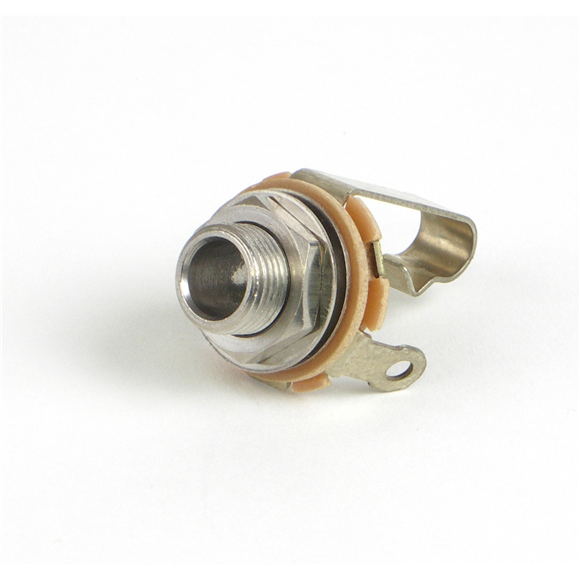

Switchcraft 11 1/4" Mono 2 Conductor Jack w/Nut & Washer, Open Circuit

Configuration

• Number of Conductors: 2
• Product Line: Littel Jacks
• Mounting Type: Panel
• Termination Style: Solder
• Contact Plating: Nickel
• Locking: Locking
• Sealed: Not Sealed
• Packaging Type: Bulk
• Standard Connector Type: 1/4" Phone Jacks & Plugs
• Jack-Plug Type: Jack
• Special Feature: Open Frame

Electrical

• Contact Resistance: 0.03 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Insulation Resistance: 10000 MOhms
• Voltage Rating: 25 Volts
• Current Rating: 1 Amps
• Circuit-Schematic: Single Open
