Used Epiphone IGC 1963 Firebird V, Ember Red, w/case

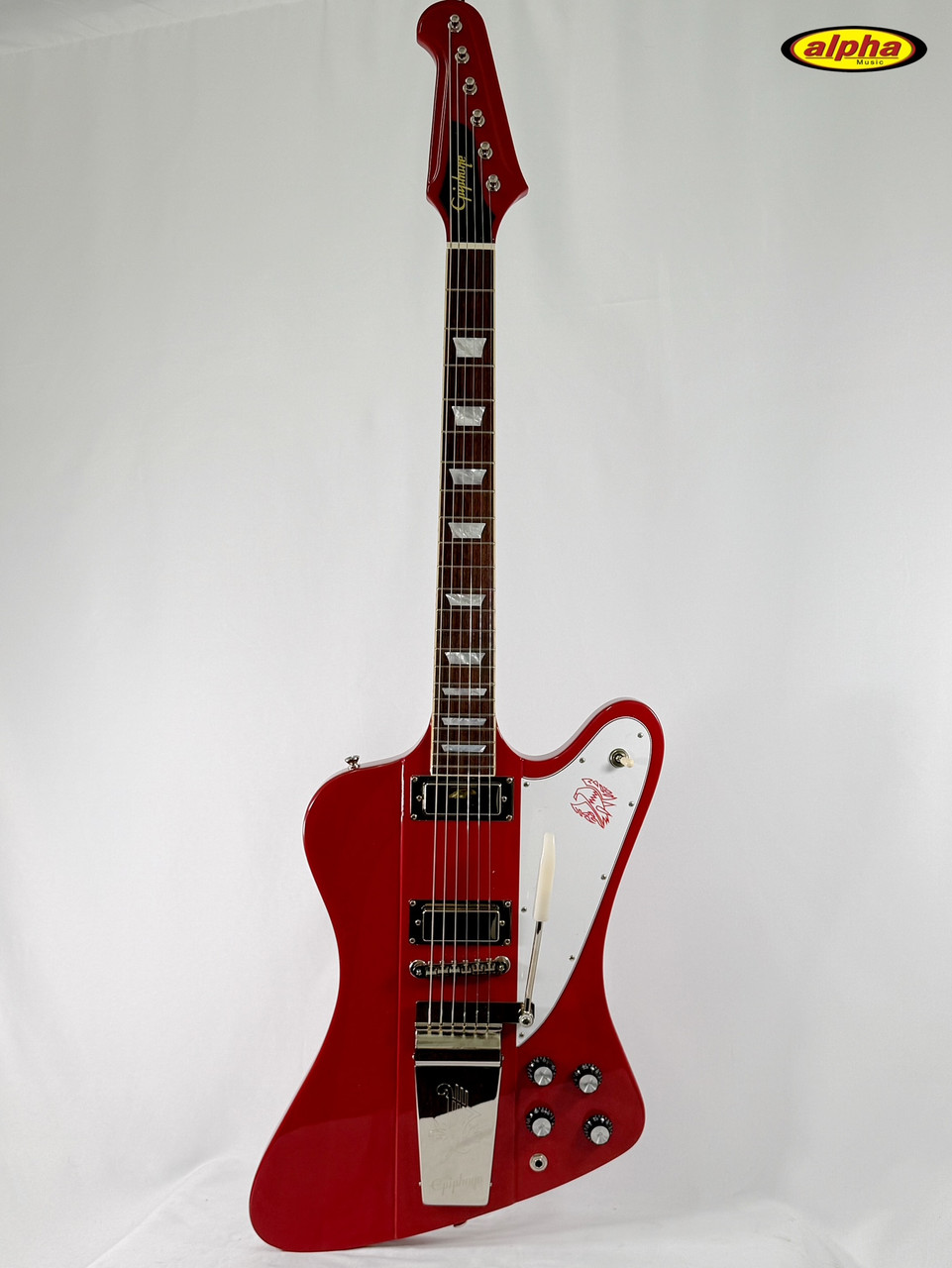

Used 2023 Epiphone "Inspired by Gibson Custom" 1963 Firebird V, Ember Red finish, with original Epiphone hardshell case

Excellent condition! Inspected and set up by our in-house technician.

Epiphone and the Gibson Custom Shop have teamed up again to create the Inspired by Gibson Custom 1963 Firebird V – an authentic replica of the guitar designed by legendary automotive designer Ray Dietrich. When it was launched in 1963, the Firebird™ was Gibson’s first neck-through-body model, and it went on to be used by players in a wide range of genres, including blues legend Johnny Winter, Keith Richards and Brian Jones of The Rolling Stones, Eric Clapton, and Phil Manzanera of Roxy Music, to name a few.

The Epiphone Inspired by Gibson Custom 1963 Firebird V delivers vintage Firebird specifications at an accessible price, including a 9-ply neck-through-body made of mahogany and walnut with mahogany body wings to either side. Kluson® planetary geared “banjo” tuners anchor the strings at the headstock, while an Epiphone ABR-1 bridge and newly redesigned Maestro™ Vibrola™ with an engraved Epiphone logo hold things down at the other end. The electronics are also premium and include Gibson USA Firebird mini humbucker™ pickups with Alnico 5 magnets, CTS® potentiometers, Mallory™ capacitors, and a Switchcraft® 3-way pickup selector toggle switch and 1/4” output jack, giving this remarkable recreation not only the look but also the sound of a classic Firebird V. An Epiphone Inspired by Gibson Custom hardshell case is also included.

Guitar Specifications

Body Specs
Binding: Single-ply Cream, Fretboard
Body Finish: Gloss
Body Material: 9-ply Mahogany/Walnut Neck-Through
Body Shape: Firebird
Body Styles: Firebird
Side: Solid Mahogany Wings

Neck Specs
Fingerboard Material: Indian Laurel
Fingerboard Radius: 304.8mm / 12.0in
Fret Count: 22
Frets: Medium Jumbo
Inlays: Mother of Pearl Trapezoid
Joint: Neck-Through-Body Construction
Neck Material: 9-ply Mahogany/Walnut
Nut Material: Graph Tech
Nut Width: 43.0mm / 1.69in
Profile: 1963 Firebird
Scale Length: 628.65mm / 24.75in

Electronics Specs
Bridge Pickup: Gibson USA Firebird Mini Humbucker with Alnico 5 Magnet
Controls: 2 Volume, 2 Tone, Hand-wired with CTS Potentiometers and Mallory Capacitors
Neck Pickup: Gibson USA Firebird Mini Humbucker with Alnico 5 Magnet
Output Jack: 1/4" Switchcraft
Pickup Selector: 3-way Switchcraft

Hardware Specs
Bridge: Epiphone ABR
Control Covers: Black with Inspired by Gibson Custom Hotstamped Logo
Control Knobs: Gold with Silver Reflectors (Frost Blue) or Black with Silver Reflectors (Ember Red)
Hardware Finish: Nickel
Mounting Rings: Nickel
Pickguard: 3-ply White; Firebird Logo Hotstamp in Red
Strap Buttons: 3 - Bottom, Shoulder, and Neck Heel - Historic Firebird Strap Button Placement Locations
Switch Tip: Ivory
Tailpiece: Maestro Vibrola
Truss Rod: Dual Action
Truss Rod Cover: Black with Epiphone Logo in Gold
Tuner Plating: Nickel
Tuning Machines: Kluson Banjo-style Planetary

Misc Specs
Case: Hardshell
Model: EIGC63FB5CHNM3
Headstock: Firebird
Headstock Inlay: Modern Epiphone Logo in Gold (on Truss Rod Cover)
Strings Gauge: .010, .013, .017, .026, .036, .046
