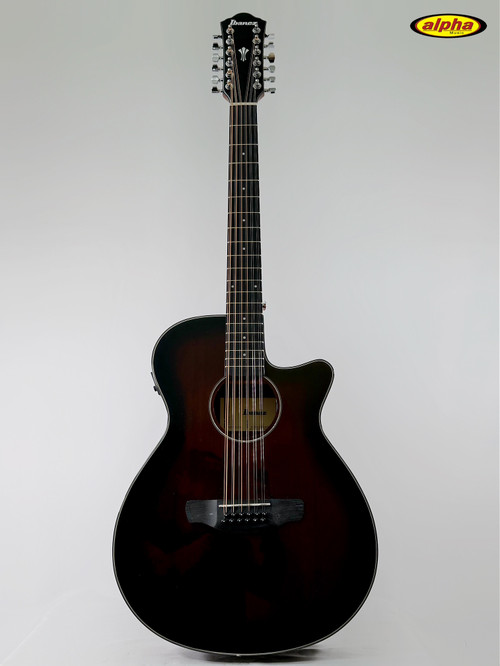

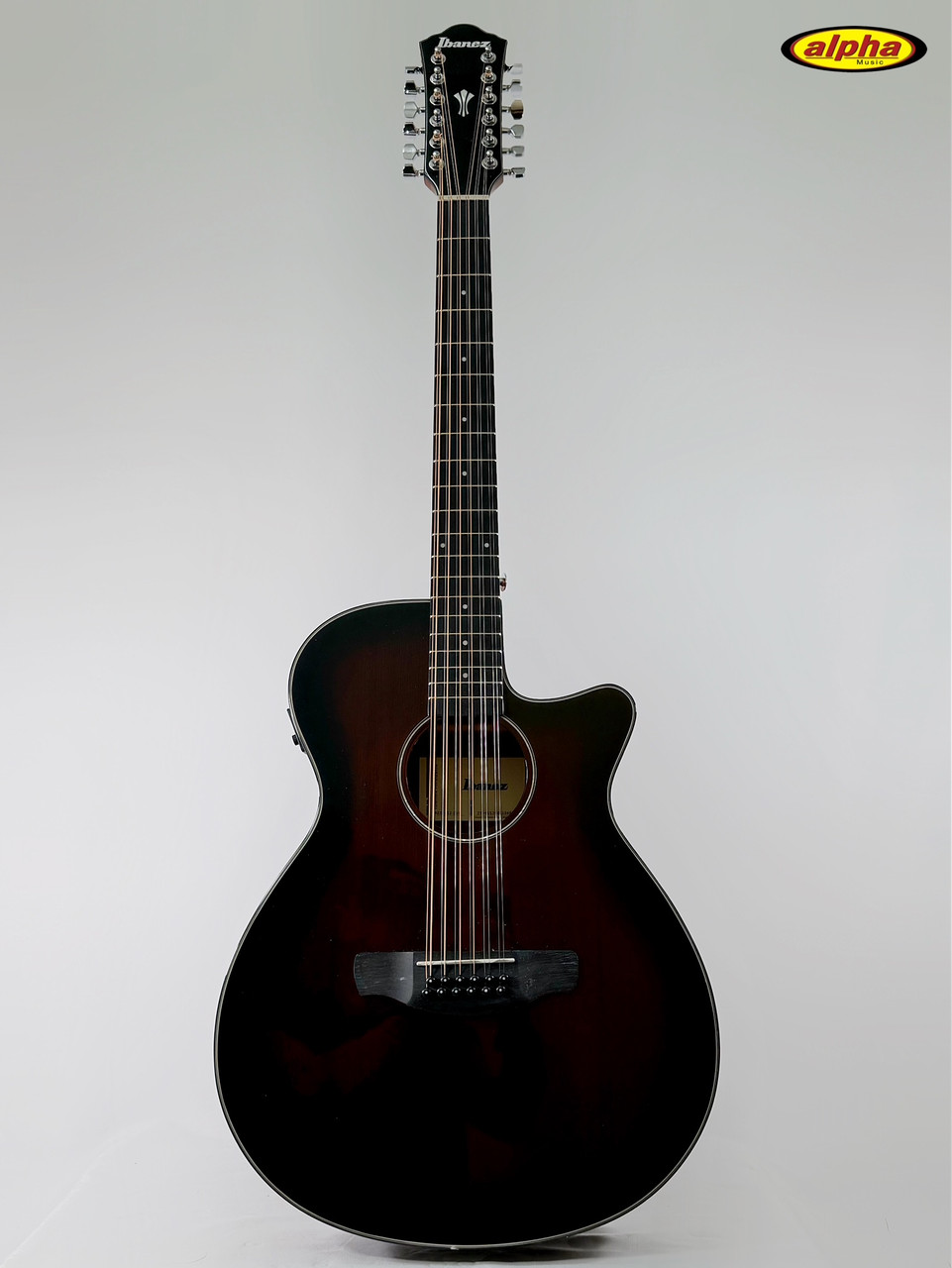

Used Ibanez AEG5012-DVH 12-String, Dark Violin Sunburst

SPECS

body shape: AEG body
top: Spruce top
back & sides: Sapele back & Sapele sides
neck: Comfort GripNyatoh neck
fretboard: Purpleheart fretboard
bridge: Purpleheart bridge
inlay: White dot inlay
soundhole rosette: Acrylic rosette
tuning machine: Chrome Die-cast tuners (18:1 gear ratio)
number of frets: 20
bridge pins: Ibanez Advantage™
string space: 11mm
factory tuning: 1E,2B,3G,4D,5A,6E
pickup: Ibanez T-bar II Undersaddle
preamp: Ibanez AEQ-TTS preamp w/Onboard tuner
output jack: 1/4" output
battery: 9V x1

NECK DIMENSIONS
Scale : 634mm/25"
a : Width 45mm at NUT
b : Width 57mm at 14F
c : Thickness 21mm at 1F
d : Thickness 22mm at 7F
Radius : 400mmR

DESCRIPTION(Expand)

BODY DIMENSIONS
a : Length 19 3/8"
b : Width 15"
c : Max Depth 3 3/4"

DESCRIPTION(Expand)

PREAMP
AEG5012's preamp diagram
DESCRIPTION(Expand)

OTHER FEATURES
Recommended Case AC100C
