Yorkville EL18S Powered Sub

The EL18S is a powered subwoofer with a 18" woofer that delivers 3200 watts of peak power (1600 watts program) and goes down to 35 Hz.

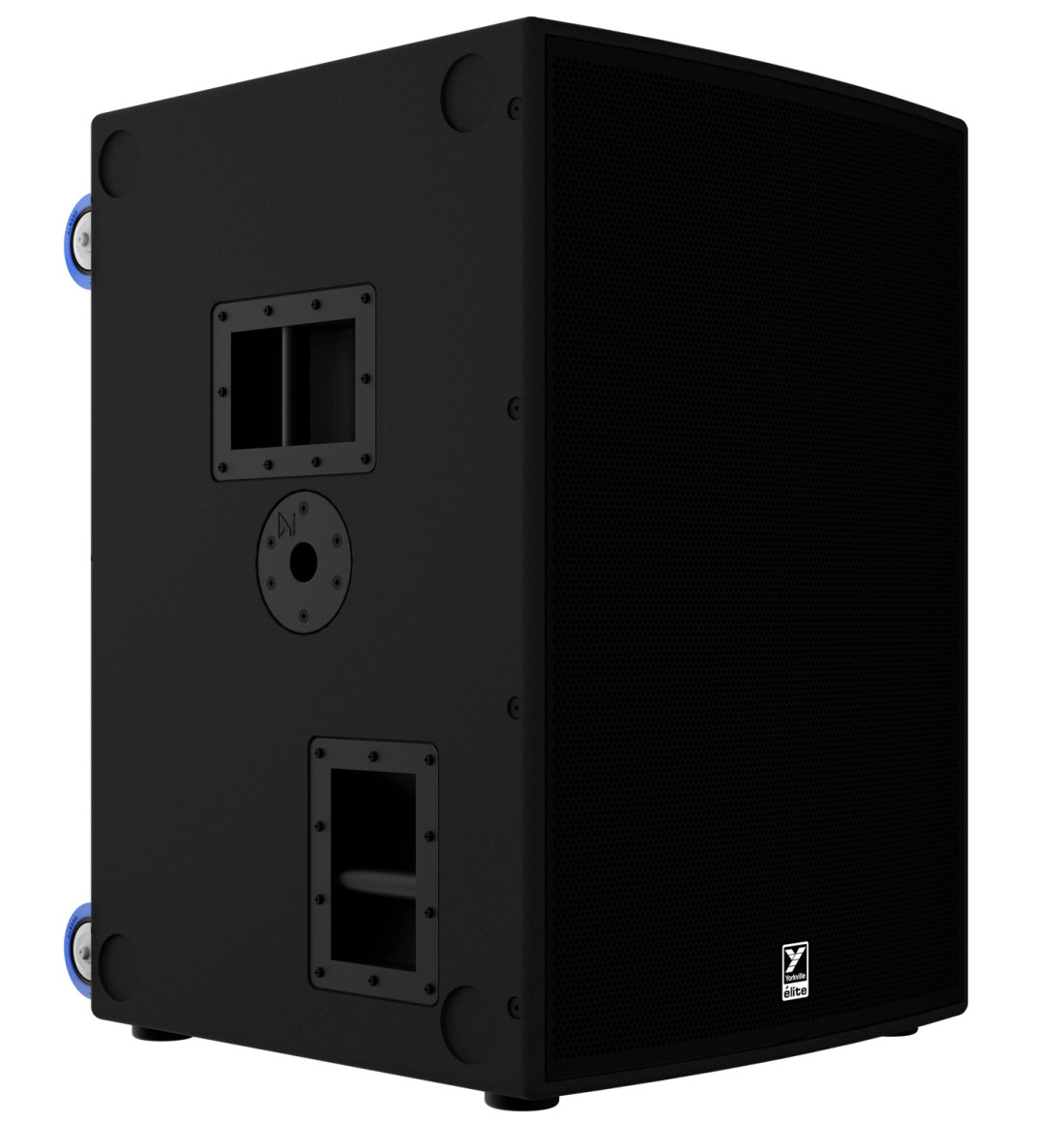

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 input and output connectors.

Features

• 3200 W Peak Power (1600 W Program)
• 18" Woofer with 4" Voice Coil
• Onboard Limiter
• 2 XLR Inputs with Full-Range Parallel Outputs
• 2 High-Passed XLR Outputs
• 15mm Birch Plywood Construction
• Made in Canada

Specifications

System Type	Powered Subwoofer
Power Rating	3200 W Peak (1600 W Program)
Max SPL	140 dB Peak (134 dB Continuous)
Frequency Response	35 Hz - 100 Hz (+/- 3 dB)
Crossover Frequency	100 Hz
LF Driver(s)	18" with 4" Voice Coil Ceramic Magnet
Power Cable	powerCON® TRUE1 Connectors (Input / Output)
Power Consumption (typ/max)	4A, 10A
Inputs	2x Combo-jack (XLR / 1/4” TRS)
Outputs	2x XLR High-Pass 2x XLR Link (Full Range)
Level Controls	Yes
LED Indicators	Power, Activity, Protection
Wheels	4x Swivel Casters (Back)
Bar Handles	2x Top, 4x Side, 2x Bottom
Flying Hardware	No
Pole Mount Adapter	1x Top, 1x Side
Enclosure Materials	15mm Birch Plywood
Grille	Powder-Coated Steel
Covering / Finish	Textured Paint
Dimensions (DWH)	24.8" x 25.7" x 35.7" (Depth with Casters 29.8”) 63 cm x 65.3 cm x 90.7 cm (Depth with Casters 75.7 cm)
Weight	176 lbs / 80 kg
